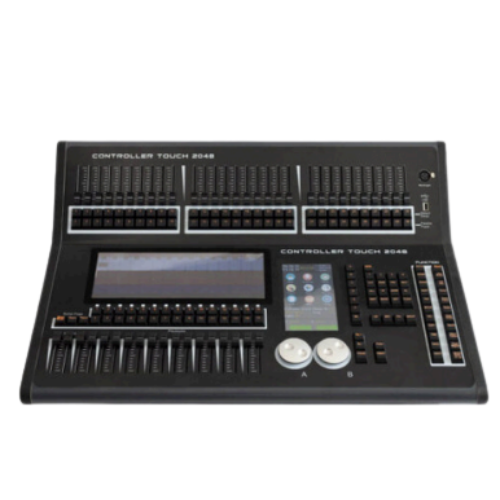

The Keya Lights DMX-2048 Controller is suited for large auditorium lighting systems, offering precise control over multiple universes and supporting over 120 fixtures. With advanced features like built-in effects engines, pixel mapping, and macros, this controller is ideal for complex lighting setups that require detailed scene creation and playback. The 7” color touchscreen provides an intuitive interface for managing large-scale lighting designs.
Controller 3
| Feature | Controller 1 | Controller 2 | Controller 3 |
|---|---|---|---|
| DMX Channels | 512 (freely invertible, assignable to 32 control channels) | 1024 DMX512 channels (2 universes) | 2048 channels |
| Fixtures Supported | 28 fixtures, 18 channels each | 96 fixtures, 40 main + 40 trim channels each, R20 Light Library | 240 fixtures |
| Built-in Library | Not Available | 60 scenes, 10 can run simultaneously | 3,000+ fixture files |
| Scene Storage | 32 programmable scenes | 600 steps per scene, 5 effects per scene | 6 programmable chases of 240 scenes |
| Chase Storage | 32 chases, 100 steps each | Dimmer, Pan/Tilt, RGB, CMYK, Color Mixing | 240 scenes per chase |
| Effects | 9 movement sequences, 7 color effects | Gobo, Iris, Focus (10 concurrent effects) | Shape Generator |
| Control Features | Fade, LTP sliding, RDM compatible | Fade in/out, LTP sliding, master fader (Global, Repeat, Lighting modes) | MIDI triggers, reversible DMX channels |
| Display | Backlit LCD (2×16) | Not Available | 320×240 px large display |
| Connectivity | USB (FAT32), 3-pin XLR, firmware update | USB (FAT32) | USB memory, MIDI, DMX, optical isolation |
| Power Supply | 110–240V AC adapter | 110–240V AC adapter | 110–240V AC adapter |
